Roll Crusher

[ Capacity ]: 10-85 t/h

[ Applicable Material ]:

Double roller crusher is mainly used for secondary and fine crushing materials with soft or middle hardness like coal, coke, limestone etc.

Request Quote


Limestone,coal,coke,clinker, granite, basalt, cement, brick, tile,building material etc

Working principle:

The materials to be crushed fall from the feeding mouth to the space between the two rolls. After being squeezed and crushed, the final products will naturally fall. When there are too hard materials or materials that cannot be crushed, the rolls of the roller crusher will automatically withdraw under the effect of hydraulic cylinder or spring to increase the gap between the rolls, and the too hard materials or the materials that cannot be crushed will fall down.Thus protecting the machine from being damaged. There is a certain gap between the two rolls that rotate at the opposite direction, and the maximum discharging granularity of the final products can be controlled by changing this gap. Double roller crusher’s the materials by relying on the two round rollers rotating at the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating at the opposite direction.


1.The rollers is wear-resisting chromium molybdenum copper alloy with long service.
2.The gap between the rollers is adjustable, so that the output size and capacity will be changed accordingly.
3.This crusher is equipped with motorless scraper. When the raw material has high moisture content, it can avoid to affect the output size and avoid sticking the roller or blocking the machine.
4.According to requirement, it could be in flat roller or toothed roller.


MODEL 2PG400 X250 2PG610X400 2PG700X400
ROLL DIAMETER (MM) 400 610 700
ROLL LENGTH (MM) 250 400 400
MAX FEEDING SIZE (MM) ≤25 ≤85 ≤100
OUTPUT SIZE (MM) 2-8 0.5-30 0.5-30
CAPABILITY (T/H) 5-10 13-40 10-100
ROLL SPEED (R/MIN) 180 75 95
WEIGHT (T) 2.2 5.9 9.8
DIMENSIONS    (L x W x H) (MM) 1215 x834x830 3700x1600x1100 4300x1200x1200
MOTOR POWER (KW) 5.5×2 15 x2 30×2

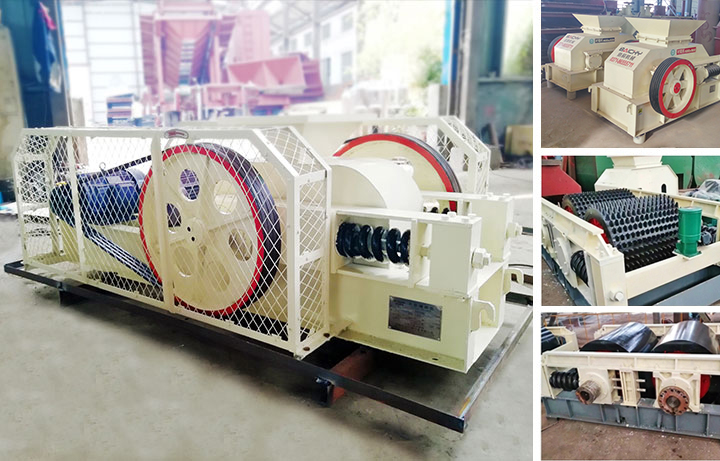

Double Roller Crusher
